Bootup and Shutdown
This page explains methods via which servers and services are started at boot time, and tells you how to use Webmin to have your own commands run at startup.
Introduction to the Linux boot process
The very first thing to happen when a PC starts up is the loading of the BIOS from ROM. The BIOS (Basic Input/Output System) performs memory and other hardware checks, then loads a tiny piece of code from the first part of one of the system's hard disks, known as the master boot record or MBR. This piece of code is called a _boot loader_, and is responsible for displaying a menu of operating systems to the user and loading one of them. There are several boot loaders available for Linux such as LILO and GRUB, but they all do basically the same thing.
Once the kernel has been loaded, it mounts the root filesystem runs the init program, which is responsible for managing the rest of the boot process. It reads the /etc/inittab file and executes the commands it specifies, the most important of which begins execution of bootup scripts. Each of these scripts is responsible for a single task, such as initializing network interfaces, starting a webserver or mounting other filesystems. The scripts have a fixed order that they must execute in, as some of the later scripts are dependant on earlier ones - for example, network filesystems cannot be mounted until network interfaces have been enabled.
At shutdown time, a series of scripts is also run to shut down servers and un-mount filesystems. These scripts also have a fixed order, so that the de-activation of networking and other basic services happens last. If requested and supported by the hardware, the last step in the shutdown process will be the powering off of the system by the kernel.
When a Linux system starts up, different scripts are executed depending on which runlevel it is starting in. The runlevel can be set by the boot loader, or by the /etc/inittab file. The commonly used runlevels are :
- 5 - Graphical mode
- All servers and services will be started, and X started to display a graphical login prompt on the console.
- 3 - Multi-user mode
- All servers and services are started, but only the normal text login is available on the console.
- 2 - Multi-user mode without NFS
- Almost all servers and services are started, but NFS filesystems are not mounted.
- 1 - Single user mode
- Only the most basic system initialization is done, and a root shell opened on the console. This runlevel is useful if some bootup script is failing and making your system un-bootable.
See the section below on the SysV Init Configuration module for information on how to change the bootup runlevel.
The directory /etc/rc.d/init.d is usually used to store the actual bootup shell scripts. The scripts that are started or stopped in each runlevel are determined by symbolic links from the /etc/rc.d/rc_X_.d directory, where _X_ is the runlevel number. Each symbolic link has a name like S_YY_scriptname, in which YY is the order that the script is started in the boot process - the lower the number, the earlier the script starts. So /etc/rc.d/rc5.d/S10network would be run in runlevel 5 before /etc/rc.d/rc5.d/S80sendmail.
Not all Linux distributions use these directories for their bootup scripts. Some use /etc/init.d for the actual script files, while others (such as older versions of SuSE) put everything in the /sbin directory. Fortunately, /etc/rc.d seems to be becoming the standard base directory in newer distributions. Of course, if you are using Webmin you don't have to worry about the locations of any of these directories as it always knows where they are.
The Bootup and Shutdown module
This module allows you to create and edit the scripts that are run at bootup and shutdown time, called actions by the module. It can be found under the System category in Webmin, and when you enter it the main page will display a list of all available actions, whether they are started at boot, and a short description for each. See this image for an example.

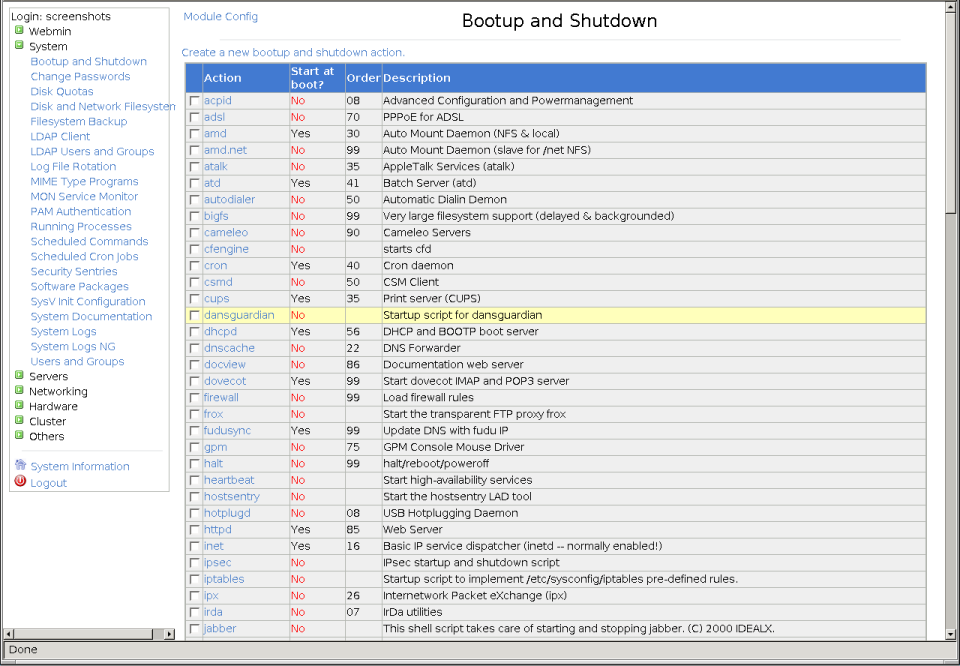

The Bootup and Shutdown module
Each Linux distribution has its own set of standard action scripts, so on one system the script httpd may start the Apache webserver, but on another in may be called apache. You should be able to get a good idea of what each script does from its description though.
Configuring an action to start at bootup
If some server on your system such as Apache or Squid is not currently being started at boot time, you can use this module to change that. On most Linux distributions, every server that comes with the distribution will have its own bootup action script, but not all will be enabled by default. To configure an action to start at boot time, the steps to follow are :
- On the main page of the module, click on the name of the action that you want to enable. This will take you to the action editing page, as shown in the image below.
- Change the Start at boot time? option from No to Yes.
- Click the Save button, and your browser will return to the list of actions on the main page.

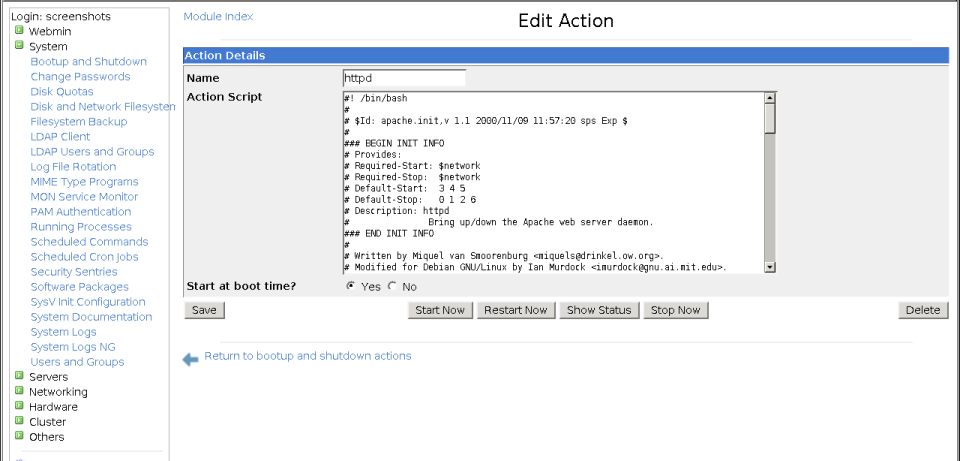

The action editing form
If there is a server that is currently being started at boot time that you want to disable, just follow the same steps but set the Start at boot time? option to No instead.
Starting and stopping actions
Even though action scripts are normally started at boot time and stopped at shutdown time, you can start or stop them at any time using Webmin. Many action scripts can also perform additional functions, such as showing the status of a server or reloading its configuration. To start or stop an action, do the following
- On the main page of the module, click on the name of the action. This will take you to the action editing form shown in the image below.
- At the bottom of the page in the middle will be a row of buttons, each for running the action script to perform some function. Depending on the script there may be different buttons available, but some of the most common are : *Start Now *Immediately starts the server or service. On some versions of Linux, this will do nothing if the action has already been started and the server is already running. *Stop Now *Stops the server or service. Of some Linux versions, this will do nothing unless the action has already been started. *Restart Now *Stops and restarts the server. In many cases, this will do nothing if the action has not been started yet. *Reload Now *Where available, this function tells the server started by the action to re-read its configuration files. *Show Status *Just displays a message telling you if the server is running or not, and if so what its PID is.
- After you click the button for the function that you want to perform, a page showing the output from the action script will appear. This should indicate whether the action was performed successfully or not.
Adding a new action
If you have a command that you want run at boot time, creating a new action script is the best way to set it up. Servers like Apache or Qmail that have been compiled and installed manually do not have actions, so you will need to create one that runs whatever command is necessary to start the server.
To create your own action, follow these steps :
- On the main page of the module, click the *Create a new bootup and shutdown action* link above or below the list of existing actions. This will take you to the form shown in Figure 9-3 for entering the code for your new action script.
- In the Name field, enter a short name for the action like qmail. Every action must have a unique name.
- In the Description field, enter a few lines of text to describe your action - maybe something like Start the Qmail mail server. This will show up on the main page of the module under the Description column.
- The Bootup commands field must be filled in with the shell commands that you want run when your action is started at boot time. For example, if you wanted to start Qmail you might enter /var/qmail/rc.
- The Shutdown commands field should be filled in with commands that you want run when your action is stopped. For example, to stop Qmail you might enter killall -9 qmail-send.
- Assuming you want your action run at boot time, set *the Start at boot time?* option to Yes.
- Finally, click the Create button to save the new action. Webmin will create a script in the /etc/rc.d/init.d directory combining the commands you entered with a standard wrapper to make a valid action script. Your action will be set to run in the current runlevel, with order number 99 so that it is run last. If you want to be able to control exactly which runlevels and in what order your action is run, see the *Allow selection of individual runlevels* option in the Module configuration section below.

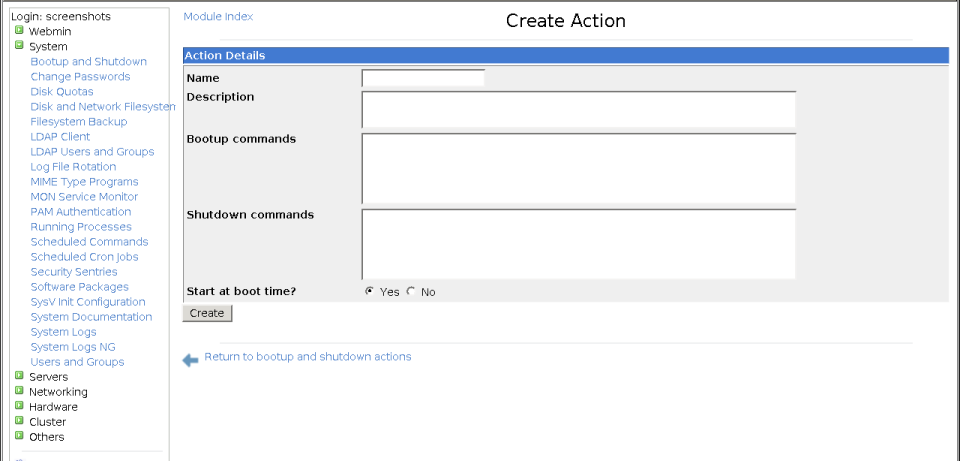

The action creation form
After an action has been created, you can edit the start and stop commands by following this process :
- On the main page of the module, click on the name of your action. This will take you to the action editing form shown in Figure 9-2.
- In the Action script text box, look for a line like 'start'). The commands that are run at boot time will after it, up the a line containing just ;;. Edit them as you wish, but leave the surrounding code alone. Similarly, the commands that are run when the action is stopped are between 'stop') and ;;. Changing any other part of the script is a bad idea unless you know what you are doing.
- Click the Save button to apply your changes.
Any of the existing action scripts can be edited using Webmin, not just your own creations. Be careful editing them, as they may have a format totally different to the scripts created by Webmin.
Rebooting or shutting down your system
Linux systems should always be rebooted or shut down using the appropriate commands, rather than simply turning off the power or hitting the reset button. If not, you may lose data on your local hard drives and will certainly have to wait through a lengthy filesystem check with fsck at boot time if using a non-journaling filesystem.
To reboot, simply do the following :
- At the bottom of the main page of the Bootup and Shutdown module, click the Reboot System button. This will take you to a page confirming if you really want to reboot.
- Click the Reboot System button on the confirmation page. The shutdown process will start immediately, and if you are logged in at the console your session will be logged out. After all the shutdown scripts have been run, the system will bootup again as explained in the introduction.
The process for shutting down is almost identical - just use the Shutdown System button at the bottom of the page instead.
Configuring the Bootup and Shutdown module
Like most modules, Bootup and Shutdown can be configured by clicking on the Module Config link on the main page. This will take you to the standard configuration editing page, on which the following settings are available under the Configurable options header
None of the other options on the configuration page should be changed, as they are set automatically by Webmin based on your operating system type.
Other operating systems
The system of bootup scripts used by Linux is used by many other Unix operating systems, but not all of them. Even those that do use it have some slight differences in their implementation, and almost all use different directories for storing the actual scripts and links.
- Sun Solaris, HP/UX, SCO UnixWare, SCO OpenServer,
Compaq Tru64/OSF1 and SGI Irix
- All these operating systems use action scripts that are very similar to Linux, but are stored in different directories. Because those that come with the system do not have descriptions the main page of the module will just display action names by default.
- FreeBSD, NetBSD and OpenBSD
- The BSD family of operating systems does not use action scripts at all, instead relying on a fixed set of scripts that are run at boot time. One of the these scripts (/etc/rc.local) is for system administrators to add their own commands to be run at boot time. On any of these operating systems, the main page of the module will just display a form for editing the rc.local file, above the Reboot System and *Shutdown System* buttons. To add any commands that you want run at boot time, just enter them into the text box and click the Save button.
- IBM AIX
- AIX is very similar to the BSD operating systems in that it does not have action scripts. Instead, the file /etc/rc can be edited to add additional commands to be run at boot time, using the form on the main page of the module. </blockquote>
- Apple MacOS X
- Apple's version of Unix uses a totally different set of files for storing actions to be run at boot time than any other supported operating system. Separate action scripts still exist, but the user interface in this module for viewing and editing them is quite different.
If your operating system is not on the list above then it is not supported by the Bootup and Shutdown module at all, so the module icon will not appear in Webmin.
The SysV Init Configuration module
As explained in the introduction to this chapter, the very first file read by the system to determine which commands to run at boot time is /etc/inittab. It is read by the init program, which is the first process to be run after the Linux kernel finishes loading, and which remains running until the system is shut down. The inittab file specifies which runlevel to boot into, the commands to be run to start all of the action scripts, processes to start to display text and graphical login prompts, and commands to run in the case of an impending power failure.
The SysV Init Configuration module, found under the System category in Webmin, can be used to edit any of these commands. However, as they are critical for ensuring that your system boots up properly, editing them is a bad idea unless you really know what you are doing. The only thing that you might want to change is the bootup runlevel, so that your system does not display an unnecessary graphical login prompt if it is not needed.
To change the initial runlevel, the steps to follow are :
- Enter the SysV Init Configuration module. The main page will display a list of commands and the runlevels and situations in which they are executed, as shown in the image below.
- Click on the entry in the ID column for the row in which the Action is After system boot. This will take you to a form for editing the inittab file entry.
- For the Bootup runlevel option, de-select whichever level is currently selected and choose a new one. Make sure that you choose exactly one level, such as *3* (for text login mode) or *5* (for graphical login mode). See the explanation in the introduction to this chapter for details on what each runlevel means.
- Click the Save button to have your change written to the inittab file. The browser will return to the main page of the module.
- If you like, you can reboot the system now using the Bootup and Shutdown module.
The SysV Init Configuration module
The module is also available on the Solaris, HP/UX, UnixWare, OpenServer, AIX and Irix operating systems. Its basic structure and purpose is the same on all systems, but the actual default commands will differ significantly. However, the instructions above for changing the bootup runlevel will work on all operating systems.
